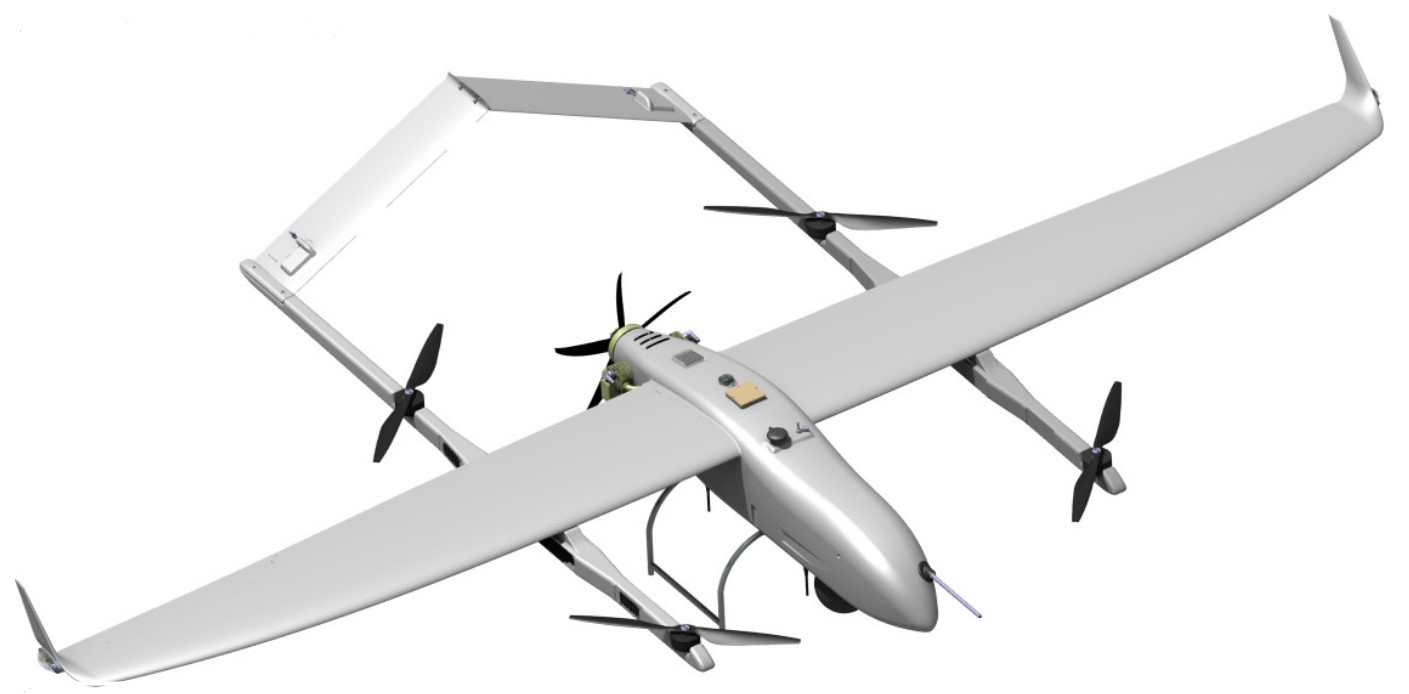

HBR30-E
VTOL HYBRID ELECTRIC UAV
GENERAL
DESCRIPTION
HBR30-E is am indigeniously designed ultra-quiet high performance fixed wing UAV, which features an Vertical Take-Off and Landing (VTOL) airframe. Equipped with BLDC motors for flight, HBR30-E can operate in most challenging environments with 2 hours of endurance with extreme silence and minimal maintenance.
APPLICATION
AREAS
- Special Operations
- Quick Reaction Forces
- Target detection and laser targeting
- Search and Rescue
- Cadastral Survey
- Agricultural Measurement
KEY
FEATURES
- 2 hours of flight endurance
- VTOL takeoff, no runway or tarmac required
- Autonomous RTH (Return To Home) when datalink disconnects
- Reliable operation capabilities in humid and dusty environments
- Flying capabilities in windy environment up to 15 knots
- Different payloads available for different mission requirements (e.g. gimbals, mapping equipment, LIDAR, Multispectral sensor) up to 5 kg

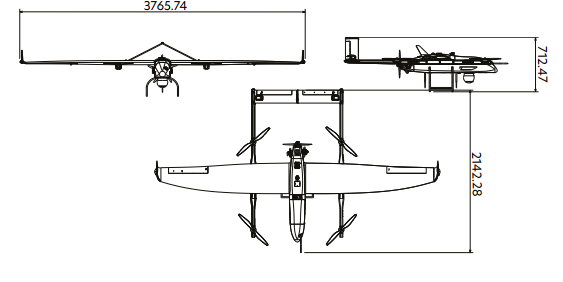

DIMENSIONS
SPECIFICATIONS
| Airframe Material | Carbon-Fiber Composite |
| Maximum Take-Off Weight | 28 kg / 61 lbs |
| Flight Time | 2 hours |
| Cruise Speed | 55 knots |
| Top Speed | 75 knots |
| Wing Span | 3.84 m / 12.6 ft |
| Lenght | 2.2 m |
| Tail Height | 0.4 m |
| Total Height | 0.75 m |
| Max Payload | 5 kg / 11 lb |
| Flight System | Autonomous Take-off, flight and landing |
| VTOL Motors | 4x BLDC, 3 kW each |
| Forward Flight Motor | BLDC, 2.5 kW |
| Flight Ceiling | 10000 ft MSL |
| Take-off Method | VTOL |
| Telemetry Range | 1W, 20 km with whip antenna |
| GCS Telemetry Range | 1W, 20 km with directional antenna |
| Communication Security | Encrypted |
| Power Distrubution System | Regulated 24V, 12V, 8V, 5V powered by an independent System Battery |
| Payload | Gimbal, Mapping Equipment, LIDAR, Multispectral Sensory |
| Temperature Range | -5 + 35 C° |
| Required Personne | 2 |
| Transportation | Single box, 2.3 m×0.9 m×0.9 m |
