ISR / ARMED UAV — VTOL
DOLU

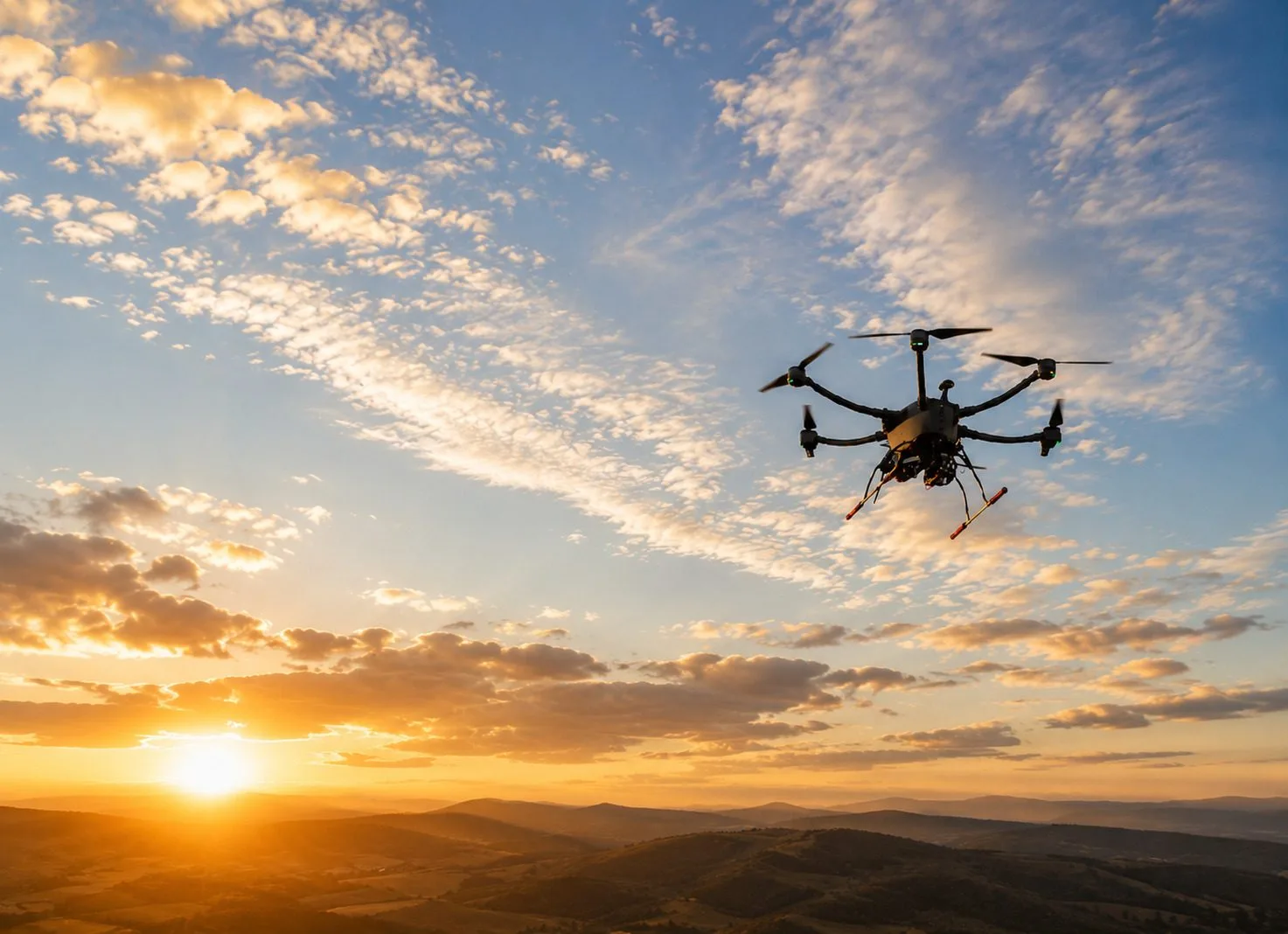

DOLU is an unmanned aerial vehicle with vertical take-off and landing (VTOL) capability, designed for ISR and armed missions. Its carbon composite body is water- and dust-resistant and allows tool-free assembly and disassembly in the field. It features field-swappable weapon and payload brackets and an air data module for precision strike.
10 km
Operational Range (ISR)>60 min
Flight Time (ISR)<30 kg
Take-off Weight (ISR)VTOL
Vertical Take-off
Technical Specifications
General
Body MaterialCarbon Composite Reinforced with Carbon Plates
Take-off Weight<30 kg (ISR) / <40 kg (Armed)
Operating AltitudeUp to 2,000 m
Flight Level>2.000 m
Take-off / LandingVertical (VTOL)
Position Accuracy±1 m
Performance
Cruise Speed15 m/s
Maximum Speed20 m/s
Operational Range10 km (ISR) / 5 km (Armed)
Flight Time>60 min (ISR) / >45 min (Armed)
Live Video Range>10 km
Environmental Conditions
Operating Temperature-10°C / +55°C
Humidity>%95
Water SplashResistant to Field Operations
VibrationResistant to Field Operations
System, Power & Payload
AutopilotIn-House Developed Tactical-Grade Autopilot + IMU
CompassMilitary Grade
Power Distribution5V / 8V / 12V (Separate Power Lines)
GPSOptional DGPS
BatteryLi-Ion Cells
GCS AntennaHigh-Gain Antenna (10 km Range)
Weapon / Payload BracketsIR/EO/LRF Gimbal, 4x60mm Mortar, 2x82mm Mortar, Opt. 6xT40 Grenade
Highlights
Mission Capabilities
ISR and Armed Mission Capability
Field-Swappable Weapon/Payload Brackets
Air Data Module for Precision Strike
Mechanical and Software Safety
Tool-Free Assembly / Disassembly
Water- and Dust-Resistant, Military-Grade Casing
