FIXED-WING / VTOL — GASOLINE

HBR30-G

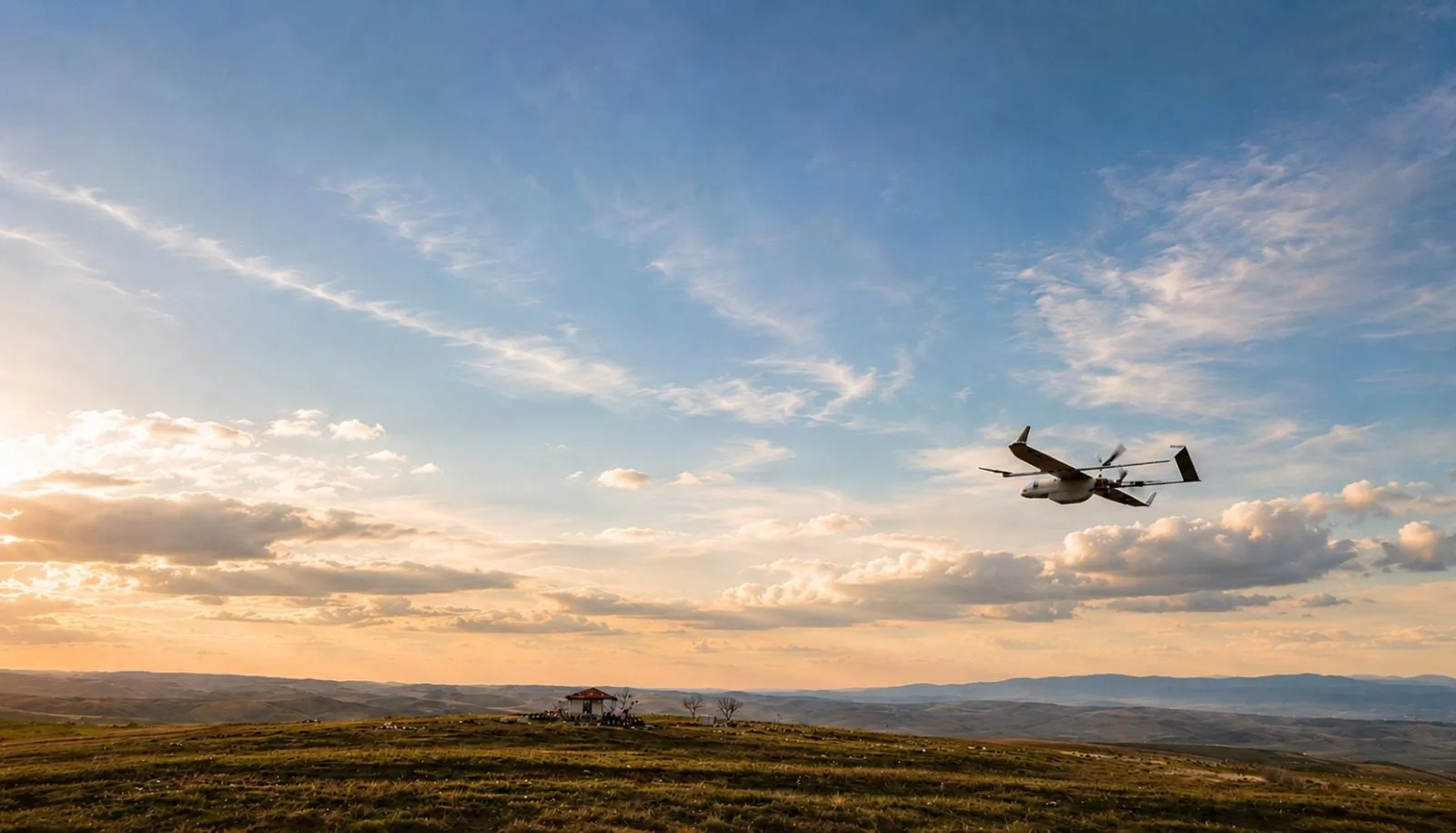

HBR30-G is a gasoline-powered, fixed-wing unmanned aerial vehicle with vertical take-off and landing (VTOL) capability and a modular design that enables efficient ISR (intelligence, surveillance, reconnaissance) operations tailored to mission needs. With its "Flight Safety"-focused structure, it delivers cost-effective and reliable operation in demanding environments.

10 hours

Flight Time

20-80 km

Data Link (LOS)

5 kg

Payload

VTOL

Take-off Type
HBR30-G

Technical Specifications

General

Airframe MaterialCarbon Fiber Composite
Maximum Take-off WeightUp to 35 kg
Maximum Payload5 kg
Wingspan3.84 m
Length2.2 m
Tail Height0.4 m
Overall Height0.75 m

Performance

Flight TimeUp to 10 Hours
Cruise Speed70 Knots / 36 m/s
Maximum Speed90 Knots / 46 m/s
Flight Ceiling15.000+ ft / 4.600 m
Wind ToleranceUp to 20 Knots / 10 m/s
Operating Temperature-20°C / +50°C

Engine / Power

Flight SystemAutonomous Take-off, Flight and Landing
VTOL Motors4x BLDC, 3 kW Electric Motor
Forward Flight EngineEFI Gasoline, 2-Cylinder Boxer, 3.5 kW
Fuel CapacityUp to 9.5 liters
Alternator3-Phase AC, 300 W
Power DistributionRegulated 24V, 12V, 8V

Payload & Communication

Payload(Gimbal, Mapping, LIDAR, Multispectral Sensor)
Data Link Range20-50-80 km (mission dependent)
Communication SecurityEncrypted (Optional)
Highlights

Mission Capabilities

Internal Security
Border and Coastal Surveillance
Target Detection
Search and Rescue
Cadastral Surveys
Geographic and Agricultural Mapping
