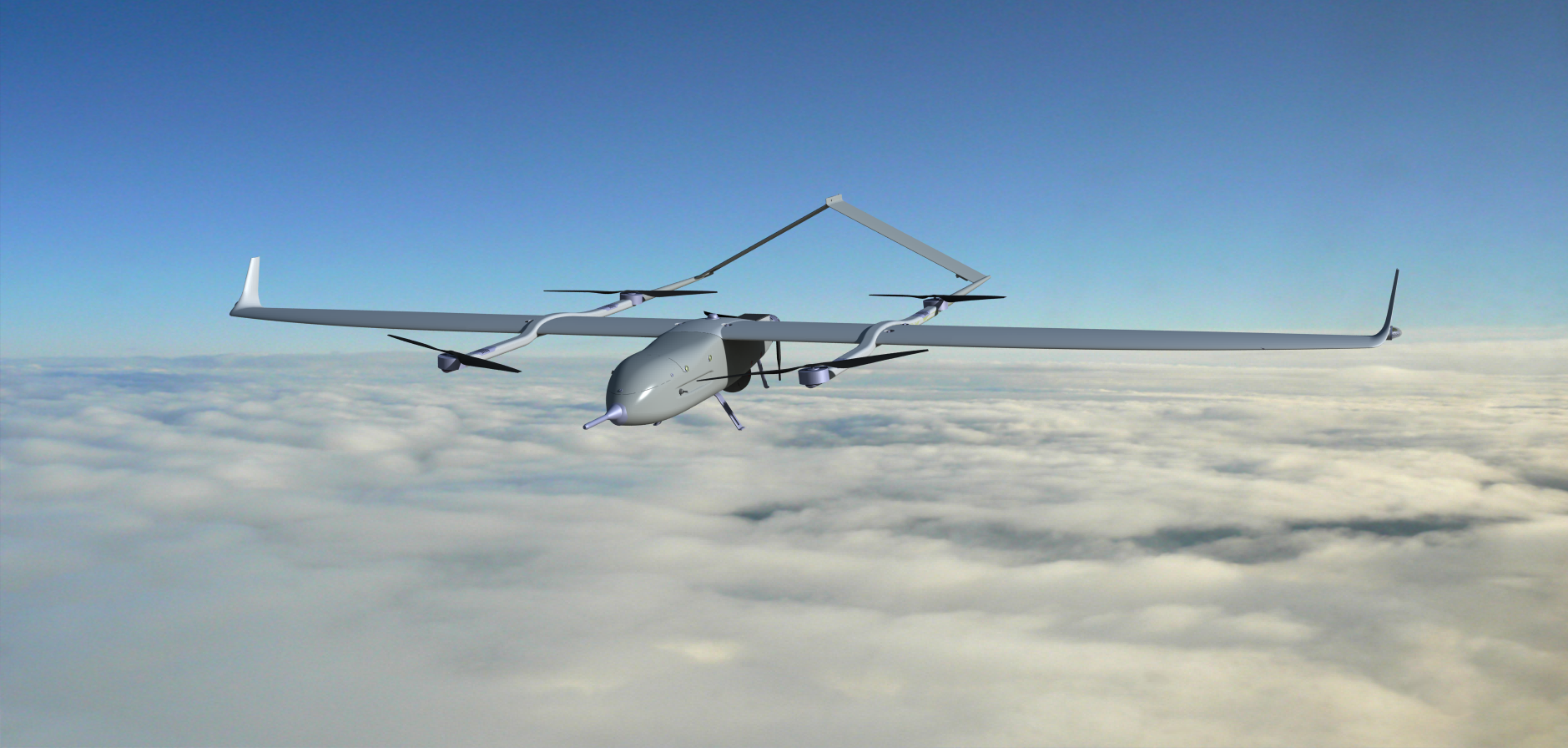

Hbr30Ev1.2_Reim2

HBR60-G

VTOL HYBRID GAS POWERED UAV

GENERAL

DESCRIPTION

HBR30-G is an indigeniously designed high performance fixed wing UAV, which features an Vertical Take-Off and Landing (VTOL) airframe. Equipped with gasoline engine for flight, HBR30-G can can operate in most challenging environments with 6 hours of endurance. Main application areas differ from battery powered HBR-30E because of the long endurance.

APPLICATION

AREAS

  • Border Securİty
  • Facility Surveillance
  • Quick Reaction Forces
  • Target Detection and Tracking
  • Search and Rescue
  • Environmental and Pollution Tracking
hbr30g

KEY

FEATURES

  • 6 hours of flight endurance
  • VTOL takeoff, no runway or tarmac required
  • Autonomous RTH (Return To Home) when datalink disconnects
  • Reliable operation capabilities in humid and dusty environments
  • Flying capabilities in windy environment up to 15 knots
  • Different payloads available for different mission requirements
    (e.g. gimbals, mapping equipment, LIDAR, Multispectral sensor) up to 5 kg

DIMENSIONS

hbr30g_boyut

SPECIFICATIONS

Operation Range Up to 150 km radius
Take off Weight 55 kg – 65 kg depends on configuration
Endurance up to 15 hours
Wingspan 65 knots
Top Speed 85 knots
Wing Span 5.5 m
Body Length 3 m
Tail Height 0.5 m
Total Height <1 m
V Loitor 60 kn
V Max 85 kn
V Stall 48 kn
Mission Altitude up to 4000 ft AGL
Service Ceiling up to 15000 ft ASL / optional 17.000 ft
Take off & Landing System VTOL
Payload (EO) Up to 5 kg gimbal
Second Payload Capacity Up to 3 Kg
Datalink Digital (FDM) 8W-10W,
Encryption optional
Backup Power Battery
Engine Carbureted 2-Cylinder boxer / optional EFI
Ignition Electronic
Fuel Type Unleaded Gasoline
Fuel Capacity Up to 15 Kg
Ignition Manuel Electric Starter / Optional on-board starter
Working Condition -20°C – +50°C, Splash water & dust prevented / Optional environmentally sealed
