PT5 PAN-TILT
POSITIONING SYSTEM
GENERAL
DESCRIPTION
It is a precise positioning device that is both free and capable, with high precision and variable speed that is unaffected by tough external circumstances, and can carry a payload of up to 5kg.
(coordinated target detection systems, vision devices, tracking antenna systems, laser devices, radar systems, optical test and measurement devices, etc.)
APPLICATION
AREAS
- Border Survelliance
- Facility Survelliance
- Radar Systems
- Directional Antenna Systems
- Wildlife Tracking
KEY
FEACTURES
- Precise positioning capability
- IP65 Environmental protection
- Infinite rotation capability in pan axis
- Ethernet interface of Payloads

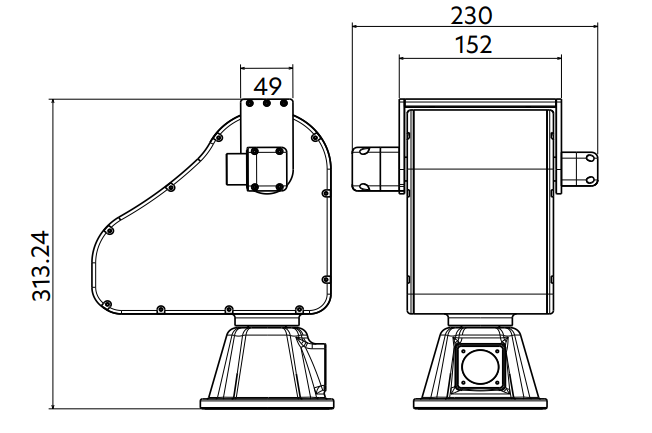

DIMENSIONS
SPECIFICATIONS
| Electrical | 24V DC 2A, Instant 6A |
| Payload connection Type | From above |
| Payload | 5kg@8cm from vertical center |
| Protocol | Z-system private,Pelco-D be developed |
| Positioning Sensibility | <1 infantry mil |
| Horizontal Velocity Hız/sn | Maximum 45 |
| Vertical Velocity Hız/sn | Maximum 30 |
| Horizontal Movement | Continual 360° |
| Vertical Movement | -40° +40° |
| Impermeability | Waterproof / Dust-Tight |
| Running Temperature | -20°C +55°C |
| Weight | 7,5 kg |
| Materials | Aluminum |
| Payload Power Transmission | Slipring, 24V – 5A |
| Payload Data Transfer | Ethernet Sinyal, 100 mbps |
| Payload Signal Detection Frequency | Signal From 4 Cable |
