POWER SUPPLY MODULE
GENERAL
DEFINATION
Power Distrubition Module: It’s an 18-independent DC output power interface that can be powered by DC, Lithium Battery, or AC input.
APPLICATION
AREAS
-
Vehicles that travel by air or on land , Ground equipment , Robotic systems.
KEY
FEATURES
-
Outputs that can be switched on and off independently
-
Features of the batary charge
-
A uninterrupted transition between input powers
-
Internal voltage and steamflow measurements were controlled by
a microprocessor

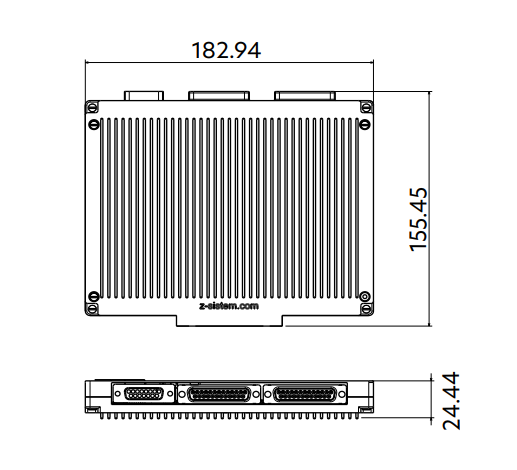

DIMENSIONS
SPECIFICATIONS
Dimentions | 183×150×40 mm |
Weight | 1250 g |
Installed Power | 300 W |
Charge Sustainability | >4 hours |
Protection Features | Adjustable Dynamic |
Input Voltage | 30-90V DC, 8S Lityum Batarty Pachage, 3 faz 30-90V RMS AC |
Output Voltage | Port of Avionic: 3x5V, 3x8V, 3x24V Port of Payload: 3X5V, 3X12V, 3X24V |
Communication | CANBUS |
