TARKOPTER – I
GENERAL
DESCRIPTION
The Tarkopter-I is a multi-purpose gasoline engine-powered helicopter UAV that
can carry up to 30 kg payloads for as long as 2 hrs (10Kg payload for 4 hours).
The flight stages, take-off, hover, flight and landing are done by autonomously.
The Tarkopter-I could be equipped with satCom as commonication link that is for
BVLOS operations. The gasoline engine has advanced cooling system that ensures
reliable operations in hot and moist enviorenment.
Tarkopter-I’s unique capability, multipayload option, enables carrying upto three
gimbal that enables Wide Area Surveliance in one platform, by focusing 3
simultaneous events at same time.
APPLICATION
AREAS
- Agrochemical spraying
- Radio Relay
- Surveliance of
- Marine
- Environment
- Critical infrastructure
- Critical infrastructure
KEY
FEATURES
- Daylight HD video Sensor
- LWIR/MWIR Night vision sensor
- Multi/Hyper spectral sensor
- Gigapixel camera for photogrametry
- Transponder ADS-B
- Lidar
- RF date link at 2.2-2.4Ghz

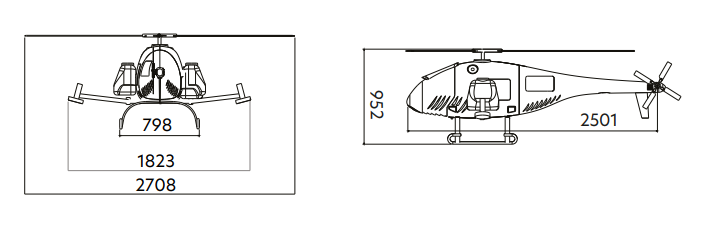

DIMENSION
SPECIFICATION
Cruising speed | 70 Km/h |
Maximum speed | 100 Km/h |
Length | 2500 mm |
Main rotor diameter | 3100 mm |
Height | 952 mm |
Engine type | 4 stroke rotary |
Fuel feed | Carburated |
Power | 30 kW |
Max. payload | 30 Kg |
MTOW | 110 Kg |
Empty weight | 60 Kg |
Fuel tank (max) | 40 lt |
Average fuel consumption | 5-9 lt/hour |
Max. climbing capacity | 3 m/sn |
Max. wind speed during taking off or landing | 12 m/sn |
Practical range | 350 km |
Practical celling | 3500 m |
Flight time (max with 12 kg payload) | 5 hours |
Parachute | Ballistic optiona |
Onboard power supply | 300W 12-24Volt |
Battery type (included) | Li-Fe |
Altimetre | Lazer/Milimetre dalga radar |
TBI (planned maintenance) | 250 Saat |
On board generator |
600W |
Power Distirbution | 300W 12-24Volt |
Temperature range | -20°C to +45°C |
Base | 15×15 port |
Control modes | Autonomous Semi-autonomous Emergency |
Takeoff and landing | Autonomous |
Emergency landing | Parachute |
Ground landing equipment | None |
Engine start | Onboard starter |
