PARACHUTE RELEASE MECHANISM



GENERAL

DESCRIPTION

The most serious issue with IHA and IHA systems parachute landings is the significant damage to the aircraft caused by the wind dragging the parachute after landing. The parachute release system, on the other hand, protects the parachute by severing the connection between it and the air as soon as it lands. The parachute release system, which has been built and developed to offer unique capabilities and possibilities, has demonstrated its durability by being used for a long period, especially in UAVs with landing systems. Reusable and low-maintenance.

* The maximum number of shots the parachute release mechanism can fire varies depending on the aircraft being used.

APPLICATION

AREAS

  • Parachuting mechanism for unmanned aerial vehicles

KEY

FEATURES

  • Fully mechanical Design

  • High durability

  • Simple to set up

  • Characteristic of re-use

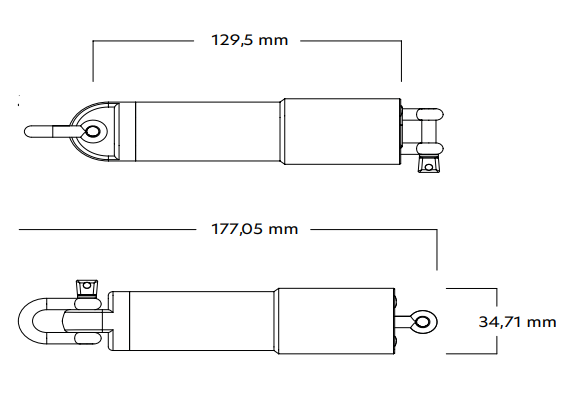

DIMENSIONS

parasut_birakma_mekanizmasi_boyut

SPECIFICATIONS

DimentionsØ34,5; boy 141,5 mm
Weights250 gr
Payload Capacity30-70 kg
Flight Speed<150 kn
Running Temperature-20°C +60°C
Components1 x Par-Drop mechanism,
2 x Steel Carabiner, 1 x Installation Device
